Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems

    Buy cheap Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems from wholesalers

    Buy cheap Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems from wholesalers
    • Buy cheap Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems from wholesalers
    • Buy cheap Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems from wholesalers
    • Buy cheap Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems from wholesalers

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems

    Ask Lasest Price
    Brand Name : Panwei
    Model Number : LT11X
    Certification : CE/SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram,Wechat
    Supply Ability : 10000 pcs / month
    Delivery Time : 5 days
    • Product Details
    • Company Profile

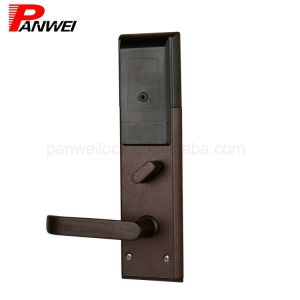

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems​


    Card Sensor Door Lock Parameters


    Dimension of External Panel

    260L*73W*20H

    Material

    Titanium alloy

    Finished

    Anodic oxidation nanotechnology/wear-resistant Strong corrosion resistance

    The lock tongue material

    304 stainless steel

    Working Voltage

    4 AA Alkaline batteries(Normal use for 8 months)

    Door thickness

    Suitable for 35-65mm

    Door type

    Wooden door/Security door/Copper door/Stainless steel door

    Card Type

    RFID M1 card (optional Temic T5577 card)

    Unlock

    IC card/ key

    Working Humidity

    20%-90%RH

    Working Temperature

    -50℃-60℃

    Opening Records

    250pcs saving in lock, 210pcs can be downloaded and read

    Key Features

    Waterproof, Unique Design, High Sensitivity

    Certificates

    CE, FCC, ANSI/BHMA A156 UL, Fidelio/OPERA


    Card Sensor Door Lock Details

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems


    Ensure more than 1 million continual life-span

    Square latch can endure up to 6000N pressure which can prevent opening by force

    Data cable is same quality as used in brand Pc

    Full copper high quality cylinder to ensure backup opening

    Free-rotating handle and cylinder is mounted on front panel, simple installation and maintenance

    Reduced sound from driving structure when opening, peace of mind for staying guest

    Can be installed on heavy door(up too 200kgs)

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems


    Intelligent handset


    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
    producing PET plastic containers and bottles in all shapes.


    Fast initialize the locks There is no need to make an installation card, so your room installation is not cumbersome.

    Check and adjust the locks clock

    Easy to view a variety of card information. (only Mifare card locks are supported)

    Easily view a variety of open house records, room management is more clear.

    Unique expert diagnostics for easy system diagnostics and maintenance.

    Support fast check out in much convenience way

    Support door lock firmware upgrade, you can change the door lock function without unlocking.


    Encoder


    Encoder is the hotel door lock system supporting products, for reading and writing card data, USB interface and computer
    connection, no driver design, wireless installation driver, plug and play

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems


    Power supply

    USB connection

    Working current

    100μA

    Support card type

    S50 M1 card

    Frequency

    13.56MHZ

    Measurement:

    125X100x30/mm

    Working temperature

    -10° C - 70°C

    Working humidity

    ≤80%

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems

    Energy switch


    When guest is in room, insert card in and the power comes. Electrical equipment in the room (lighting, air conditioning,
    electricity)Can be used; When the guest leaves the room,not in room power is not supplied. Another function is keep the keycard for guest to find it easy.

    Working voltage

    AC 180V~250V(110V required customize)

    Card Type

    RFID M1 card (optional Temic T5577 card)

    Load power

    6000W

    Limited time room number

    can be customized

    Size

    86×86×48mm(29mm bury in wall)

    Working current

    <100mA

    Power failure delay time

    15 to 20 seconds

    Working temperature:

    0~50°C

    Working humidity

    0~90%RH

    Installation

    standard 86 size box


    Elevator controller


    Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems

    Software Details

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems

    T5557 card, Mifare card series smart lock is the newly innovative product developed by our company.

    It adopts the stable and widelyapplied smart card (T5557, Mifare) as key. There is a microcomputer

    inside the key, contributing to a stable,reliable,advanced,flexible and easily managed multi-function key.

    It is suitable for hotel, office building,residence and etc

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems

    Electronic Card Sensor Door Lock / Keyless Swipe Card Door Entry Systems
